Below are gear charts for all the various ratios.
There are individual charts and charts grouped together.
All the charts are using a 27 inch tall tire as a reference
& 10,000 RPM as a shift point.
![](images/250_293_330_gears1x1.jpg)

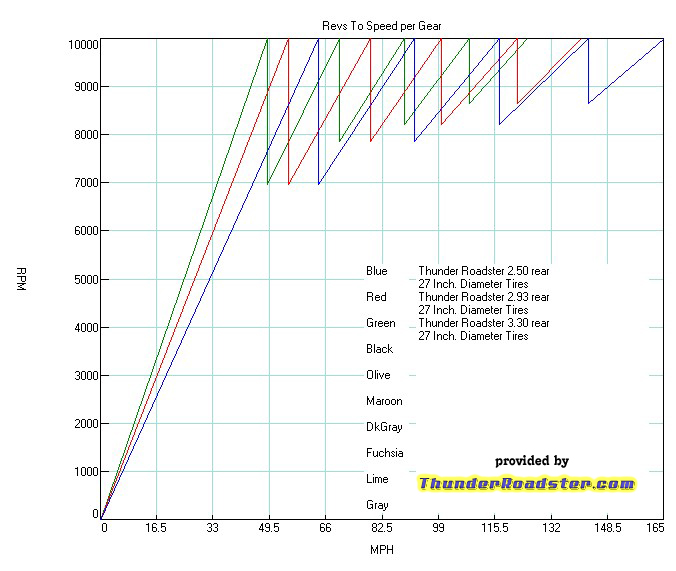

2.50 -- 2.93 -- 3.30 |
![](images/250_gears1x1.jpg)

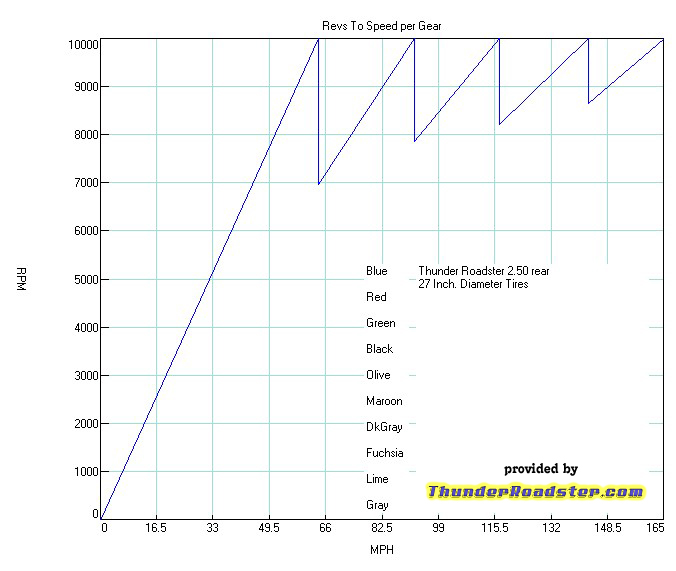

2.50 |
![](images/293_gears1x1.jpg)
2.93 |
![](images/330_gears1x1.jpg)

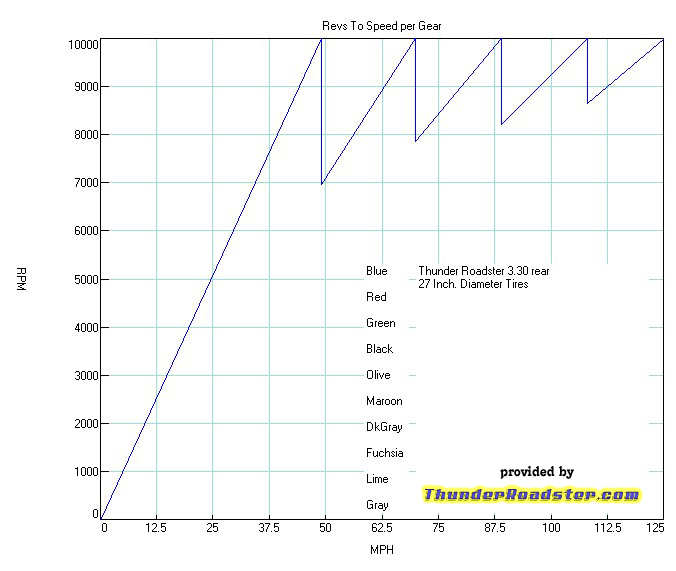

3.30 |
![](images/333_342_358_gears1x1.jpg)

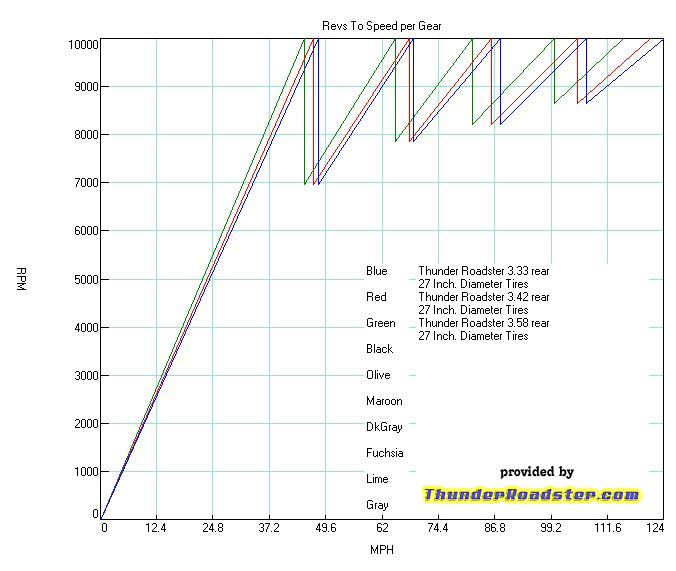

3.33 -- 3.42 -- 3.58 |
![](images/330_gears1x1.jpg)
3.33 |
![](images/342_gears1x1.jpg)
3.42 |
![](images/358_gears1x1.jpg)
3.58 |
![](images/373_390_410_430_gears1x1.jpg)

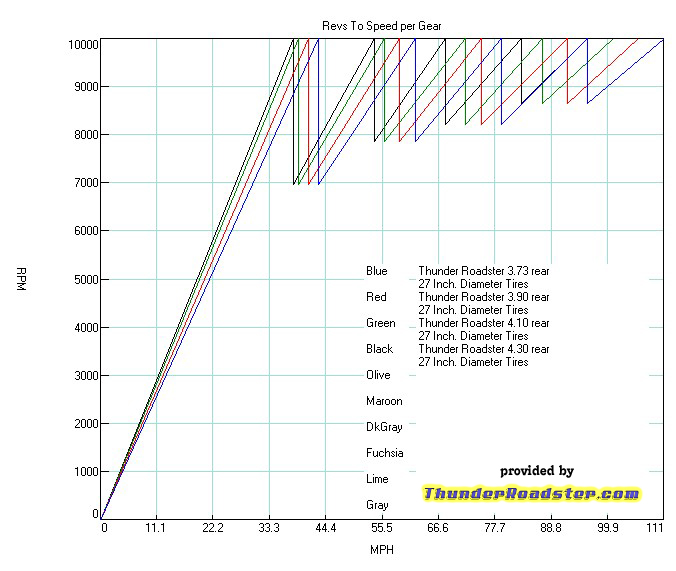

3.73 -- 3.90 -- 4.10 -- 4.30
|
![](images/373_gears1x1.jpg)
3.73 |
![](images/390_gears1x1.jpg)
3.90 |
![](images/410_gears1x1.jpg)
4.10 |
![](images/430_gears1x1.jpg)
4.30
|
|
